Chiller Barrels
![](http://www.marinebuild.com/cdn/shop/files/A-Force_Cad_with_Water_Mark_1d5a44ae-2f2e-4180-a869-80af6c488aed.png?v=1707863531&width=2330)

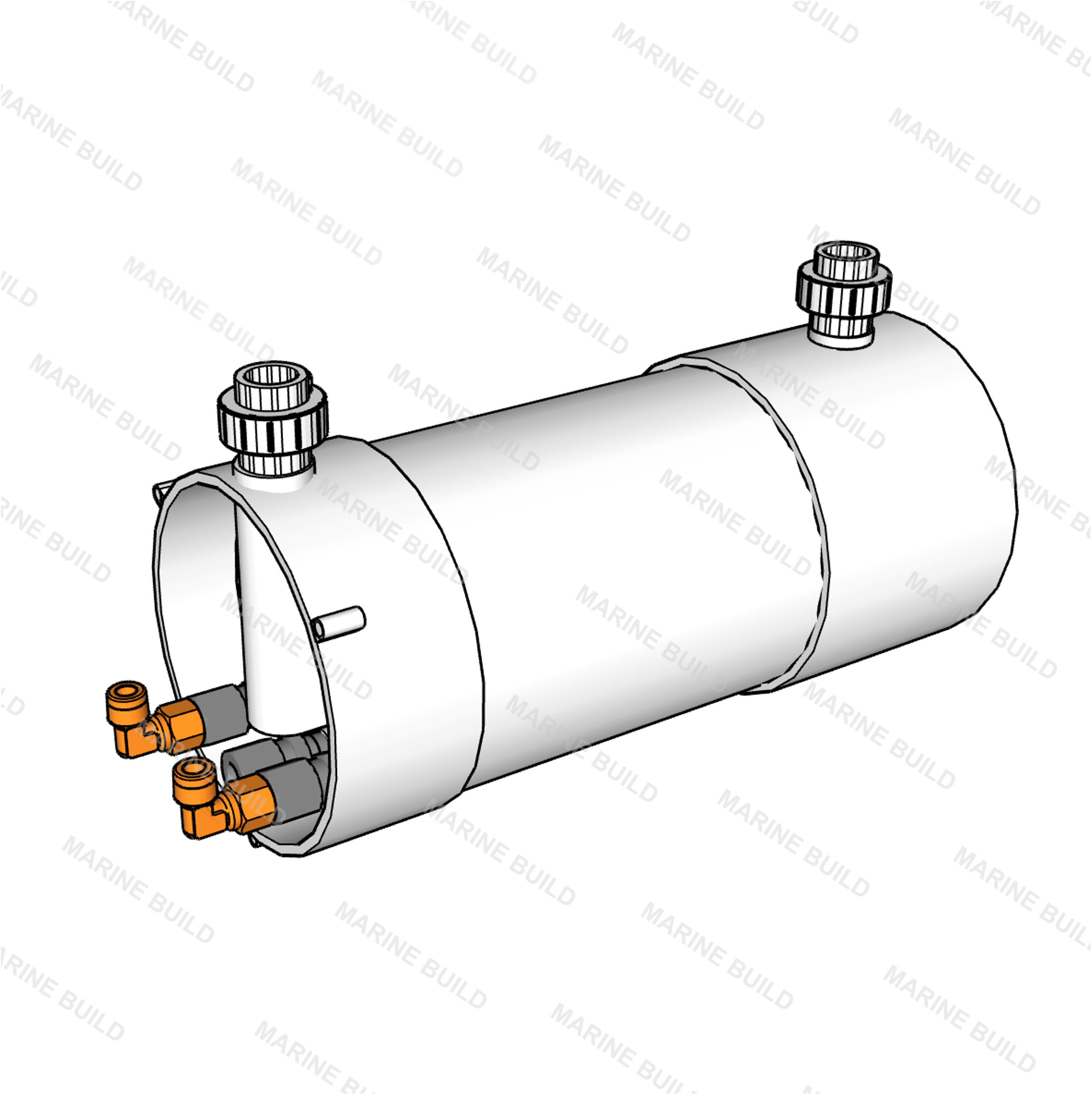

A-Force Series
A-Force Chiller Barrels are available in sizes ranging from from 1/4 HP to 1 HP
Features:
- Cooling capacity range between 3,000-12,000 BTU/H
- Non-corrosive and non-contaminating titanium helical coil heat exchanger
- 1” union water inlet and outlet
- 1/2" OD titanium dry-well for temperature sensor
- The chiller barrel shell is CSA & NSF rated
- Salt and freshwater compatible
- Made in Canada
![](http://www.marinebuild.com/cdn/shop/files/B-Force_Cad_with_water_mark.png?v=1707863724&width=2330)

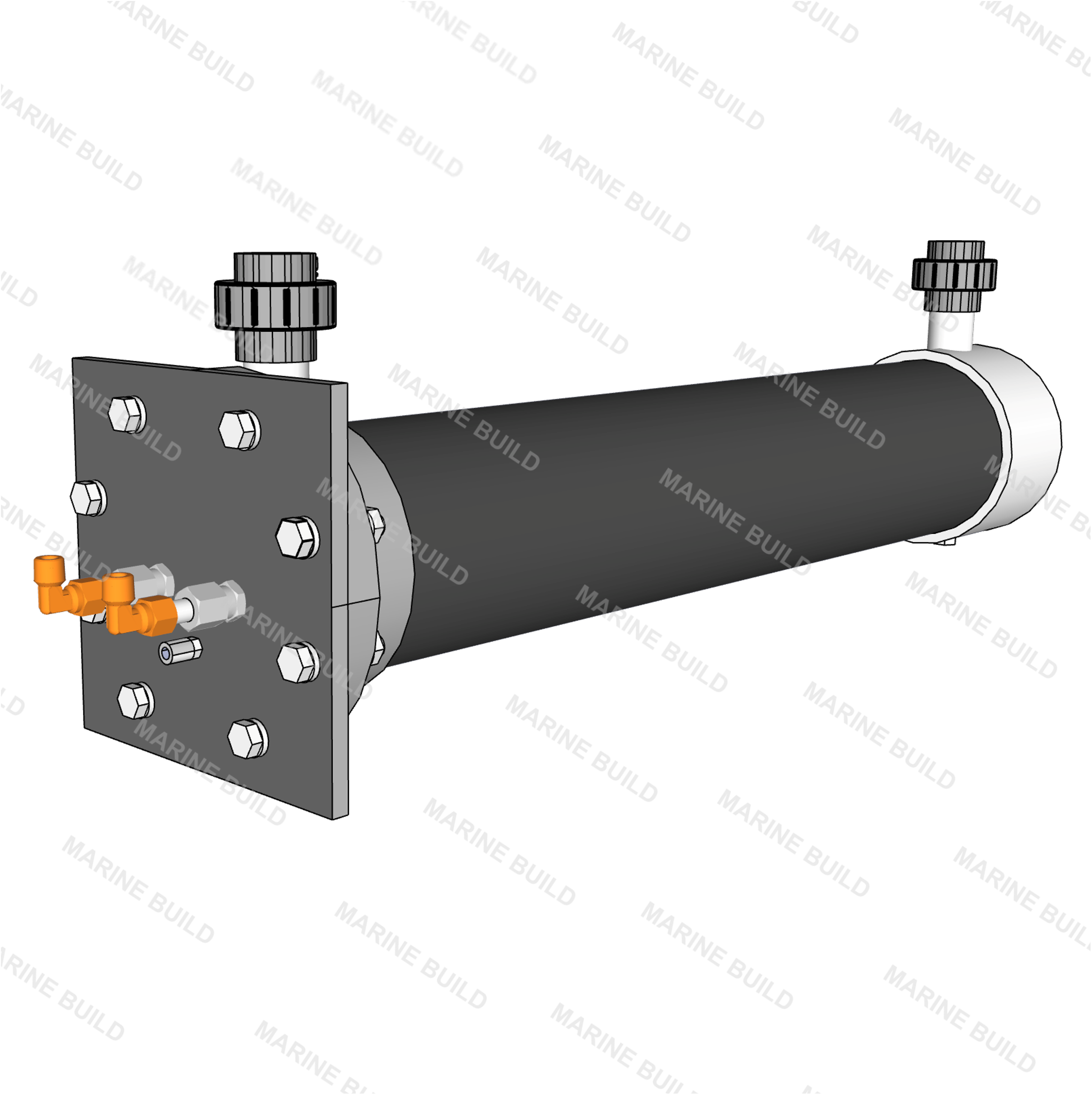

B-Force Series
B-Force Chiller Barrels are available in sizes ranging from 1-1/2 HP to 5 HP
Features:
- Cooling capacity range between 18,000-60,000 BTU/H
- Non-corrosive and non-contaminating high efficiency titanium coil heat exchanger
- 2” union water inlet and outlet
- 1/2" OD titanium dry-well for temperature sensor
- The chiller barrel shell is CSA & NSF rated
- Salt and freshwater compatible
- Made in Canada
![](http://www.marinebuild.com/cdn/shop/files/C-force_cad_with_water_mark.png?v=1707863891&width=2234)

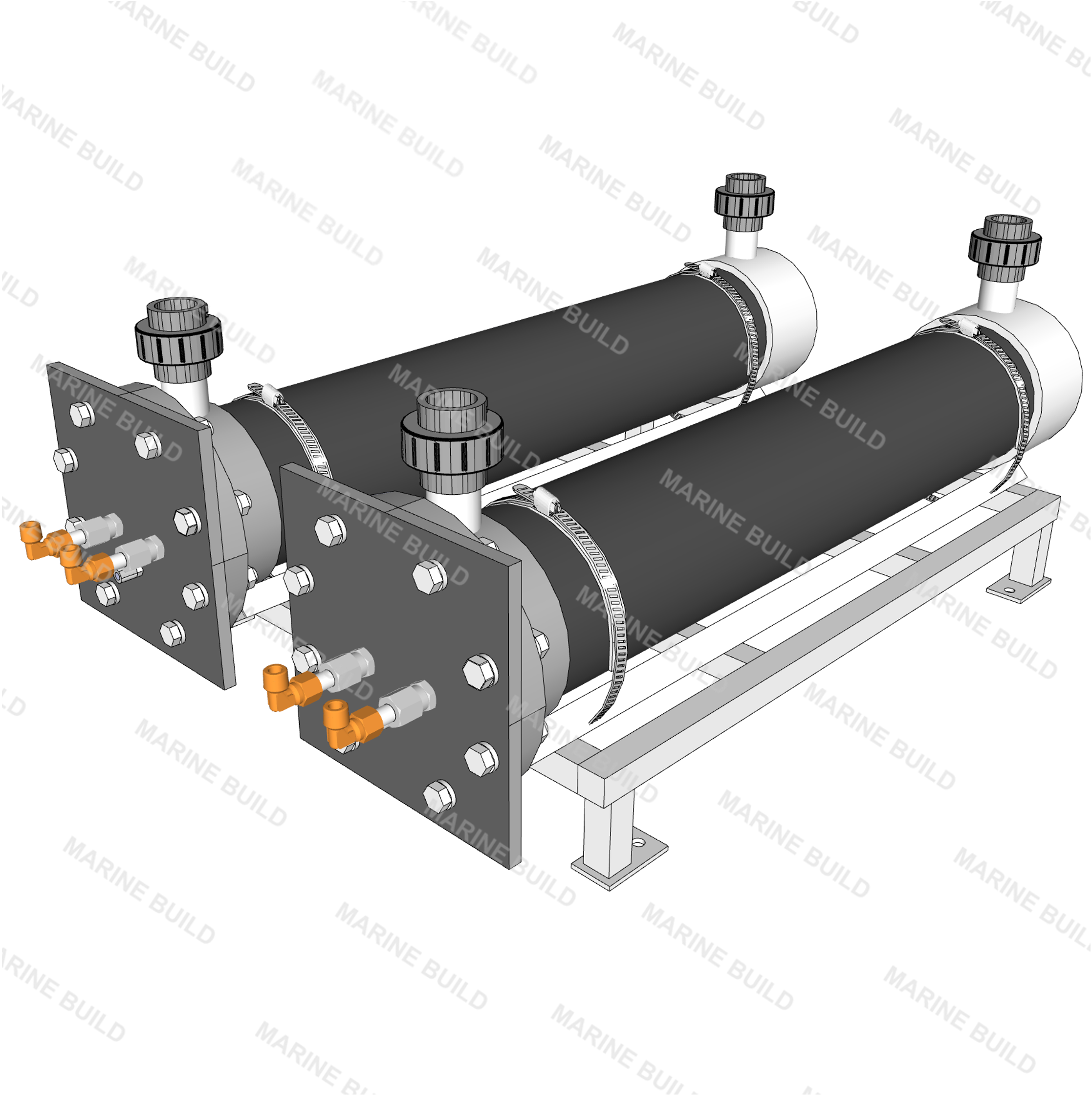

C-Force Series
C-Force Chiller Barrels are available in sizes ranging from 6 HP to 10 HP
Features:
- Cooling capacity range between 72,000-120,000 BTU/H
- Non-corrosive and non-contaminating dual high efficiency titanium coil heat exchangers
- 2" to 4" union or flange water connections
- 1/2" OD titanium dry-well for temperature sensor
- The chiller barrel shell is CSA & NSF rated
- Salt and freshwater compatible
- Made in Canada
![](http://www.marinebuild.com/cdn/shop/files/D-force_Cad_with_watermark.png?v=1707864184&width=2330)

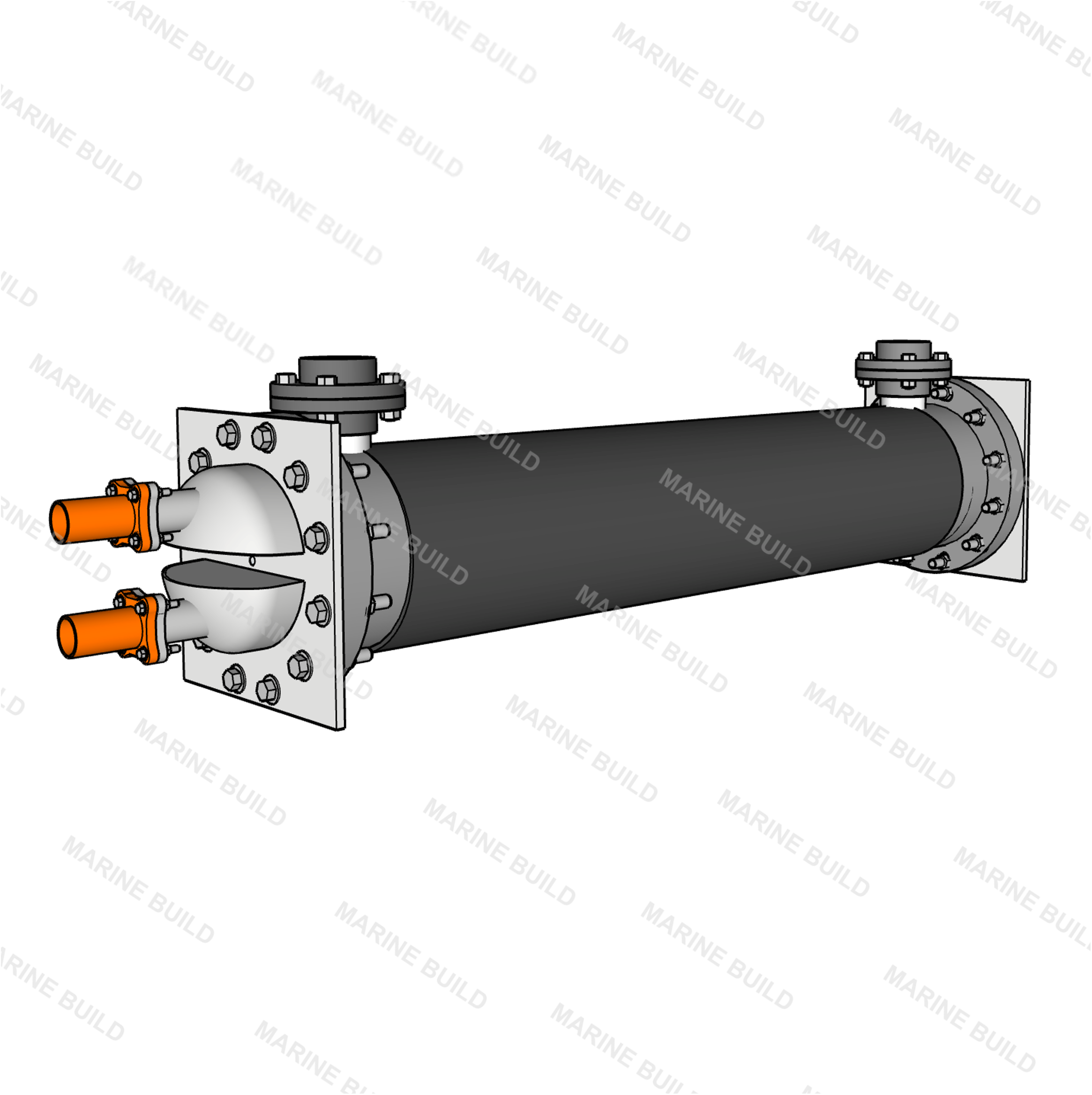

D-Force Series
D-Force Chiller Barrels are available in sizes ranging from 10 HP to 20 HP
Features:
- Cooling capacity range between 120,000-240,000 BTU/H
- Non-corrosive and non-contaminating high capacity titanium u-tube heat exchanger
- 3" to 6" flange water connections
- 1/2" OD titanium dry-well for temperature sensor
- The chiller barrel shell is CSA & NSF rated
- Salt and freshwater compatible
- Made in Canada
![](http://www.marinebuild.com/cdn/shop/files/E-Force_Cad_with_watermark.png?v=1707864255&width=2330)

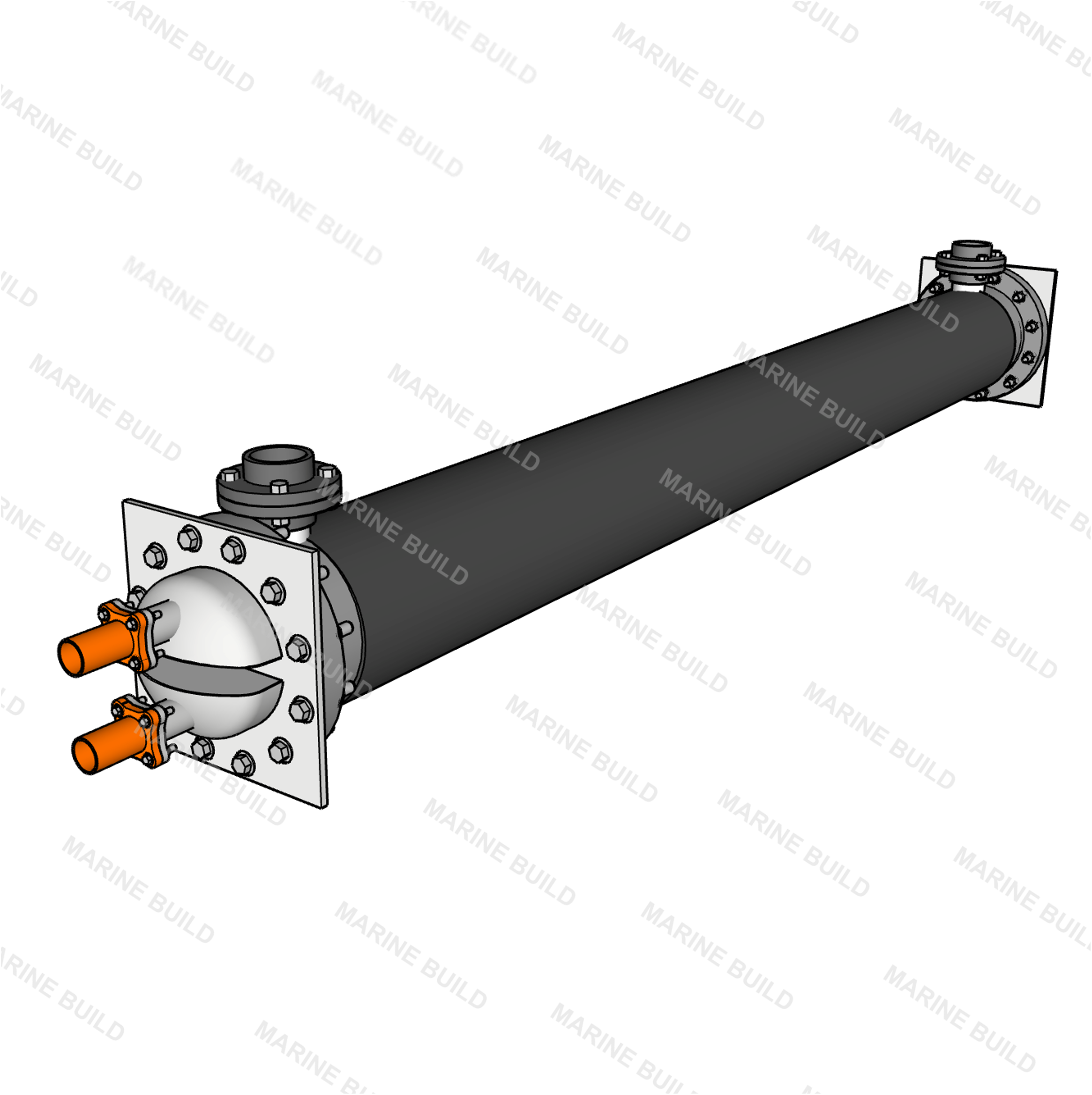

E-Force Series
E-Force Chiller Barrels are available in sizes ranging from 25 HP to 40 HP
Features:
- Cooling capacity range between 300,000-480,000 BTU/H
- Non-corrosive and non-contaminating extended high capacity titanium u-tube heat exchanger
- 3" to 6" flange water connections
- 1/2" OD titanium dry-well for temperature sensor
- The chiller barrel shell is CSA & NSF rated
- Salt and freshwater compatible
- Made in Canada
![](http://www.marinebuild.com/cdn/shop/files/F-Series_Cad_with_watermark.png?v=1707864308&width=2330)

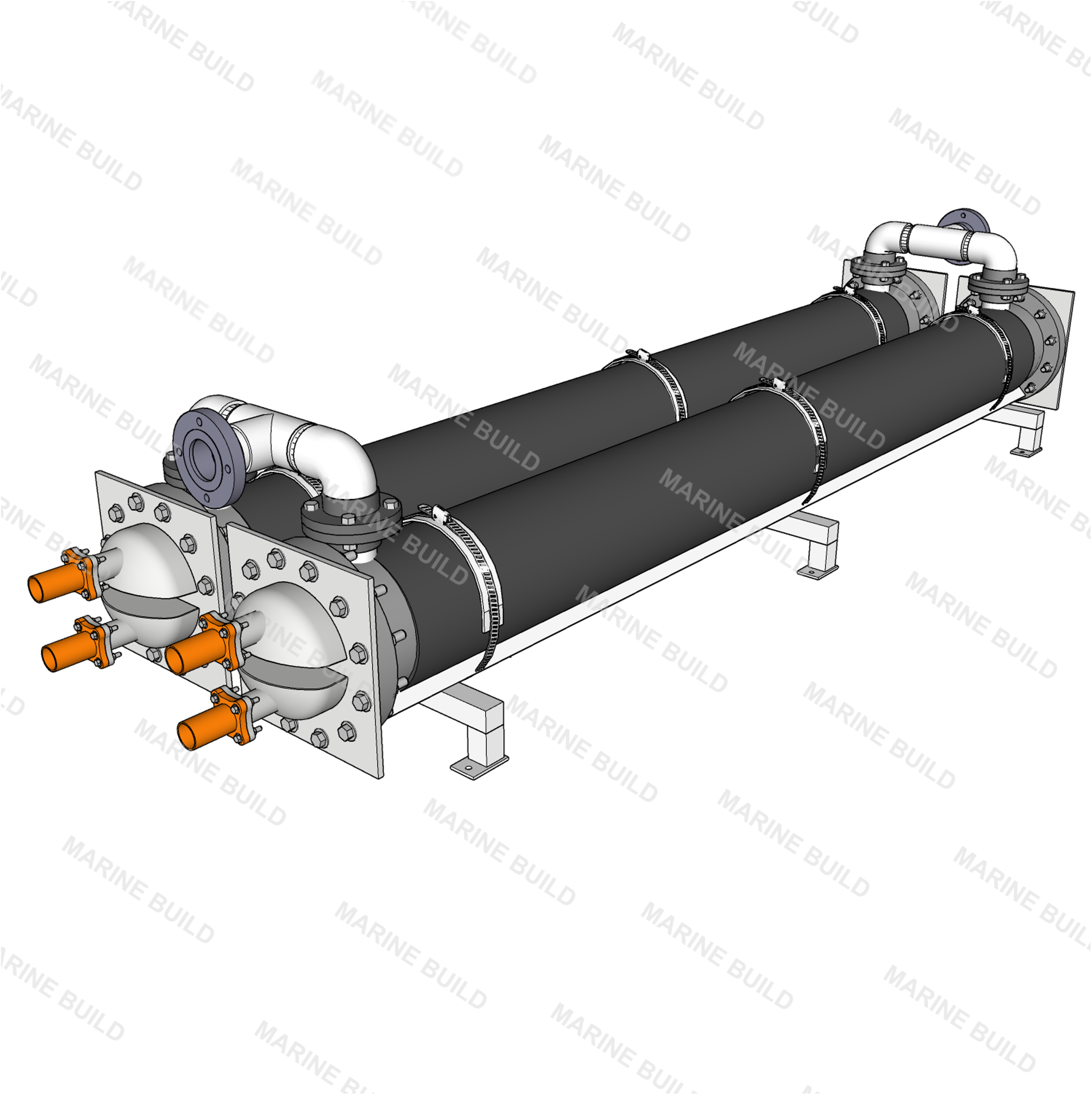

F-Force Series
F-Force Chiller Barrels are available in sizes ranging from 50 HP to 80 HP
Features:
- Cooling capacity range between 600,000-960,000 BTU/H
- Non-corrosive and non-contaminating extended dual high capacity titanium u-tube heat exchanger
- 3" to 6" flange water connections
- 1/2" OD titanium dry-well for temperature sensor
- The chiller barrel shell is CSA & NSF rated
- Salt and freshwater compatible
- Made in Canada
![](http://www.marinebuild.com/cdn/shop/files/Heat_Exchanger_package_cad_with_water_mark.png?v=1707864475&width=2330)

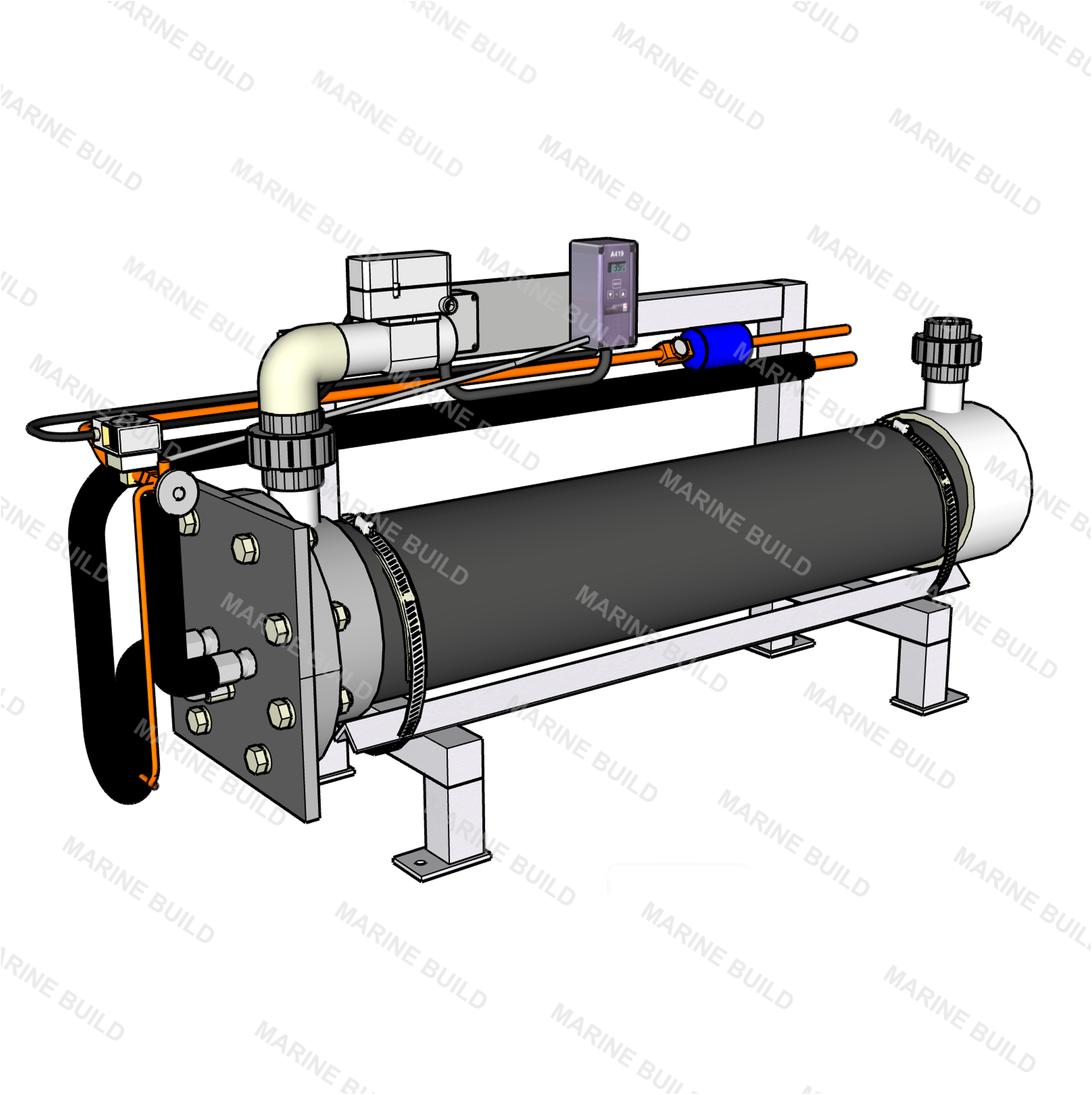

Chiller Barrel Packages
Chiller Barrel packages are available in sizes ranging from 1/4 HP to 10 HP
Features:
- Cooling capacity range between 3,000-120,000 BTU/H
- Non-corrosive and non-contaminating high efficiency titanium coil heat exchanger
- Mounted on a wall and floor mount combination welded marine grade aluminum frame
- 2” union water inlet and outlet
- LCD temperature readout in Fahrenheit or Celsius with programmable time delay
- Includes safety flow switch, thermostatic expansion valve, 120V or 240V solenoid, filter drier, & sight glass
- 1/2" OD titanium dry-well for temperature sensor
- Includes
- The chiller barrel shell is CSA & NSF rated
- Salt and freshwater compatible
- Made in Canada
