Description
KiteLite chillers range in size from 1/4 HP to 1 HP
-Formly known as Ti-Cham
Product Description:
Our KiteLite series is minimal in size with its rugged compact design. Built with commercial grade parts and designed with performance in mind. It is built to last and handle a large range of temperature requirements. The name KiteLite is only reflective in its size, but in terms of capability it is a heavyduty workhorse.
Features:

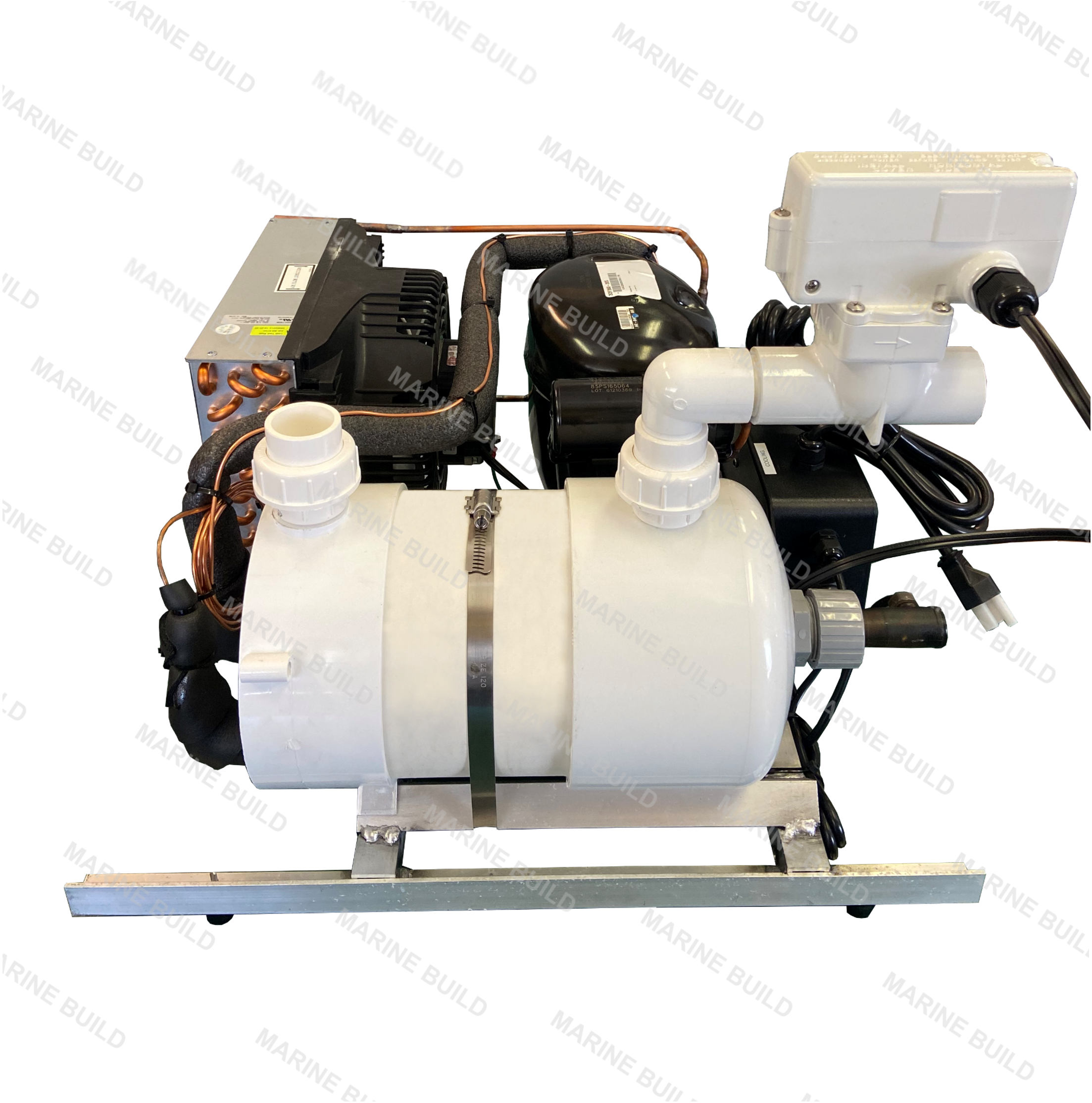

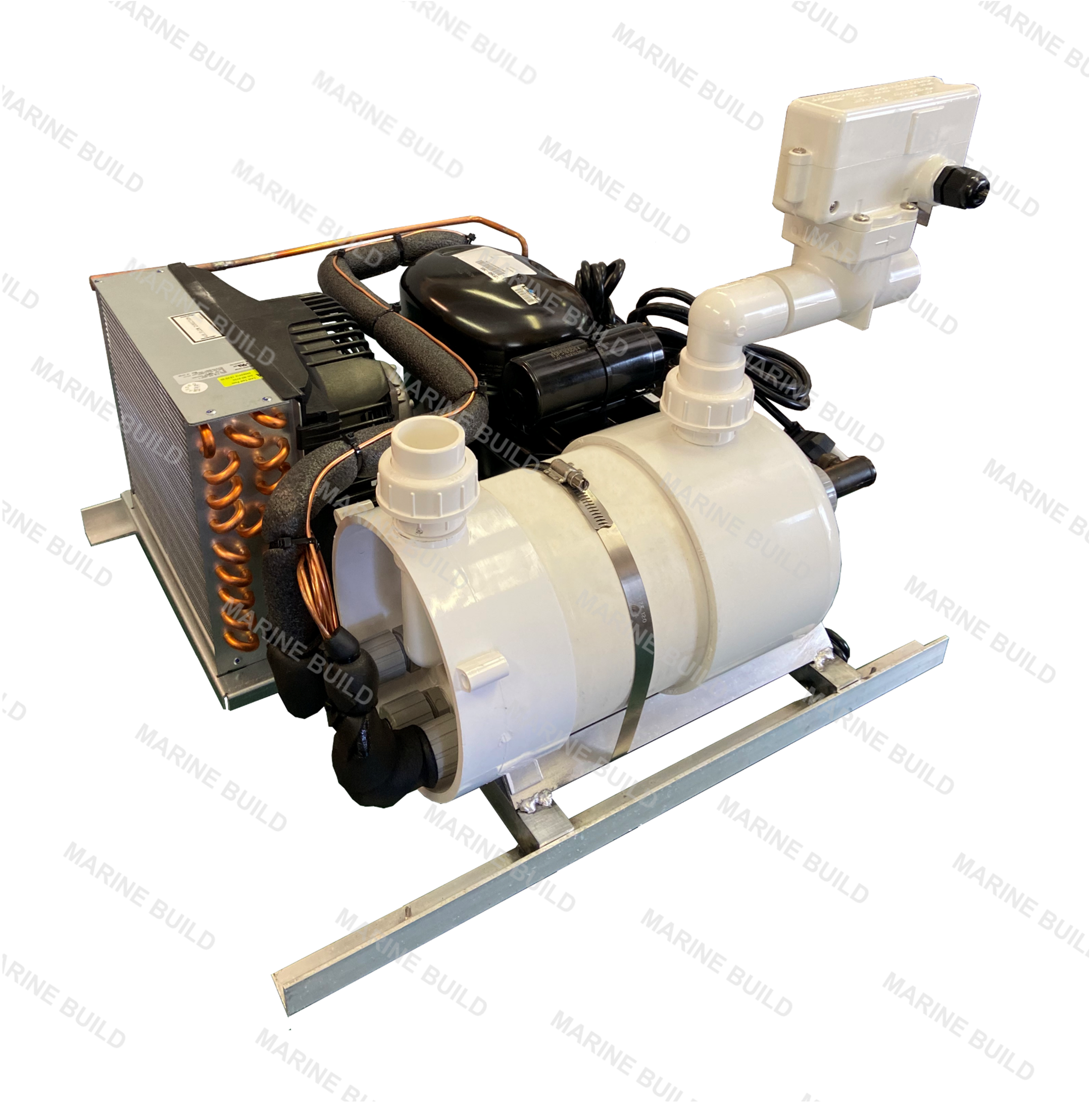

- A compact, skid-mounted unit on vibration-absorbing rubber feet
- Temperature range capability is between 40ºF-80ºF (4.5ºC–27ºC)
- Non-corrosive and non-contaminating titanium helical coil heat exchanger
- 1" union water connections

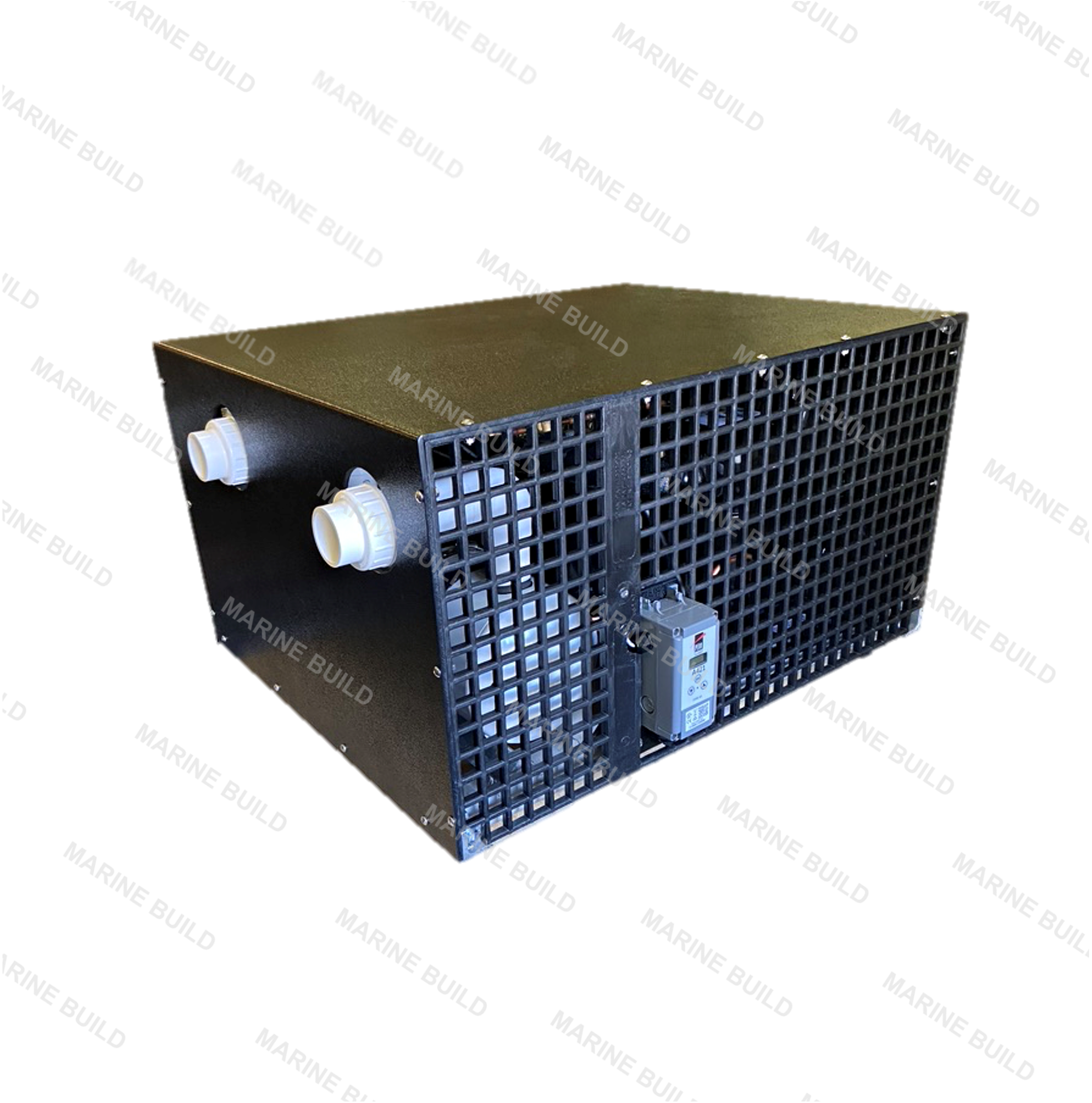

- LCD temperature readout in Fahrenheit or Celsius with programmable time delay
- UL and/or CSA approved condensing unit and components
- Salt or freshwater compatible

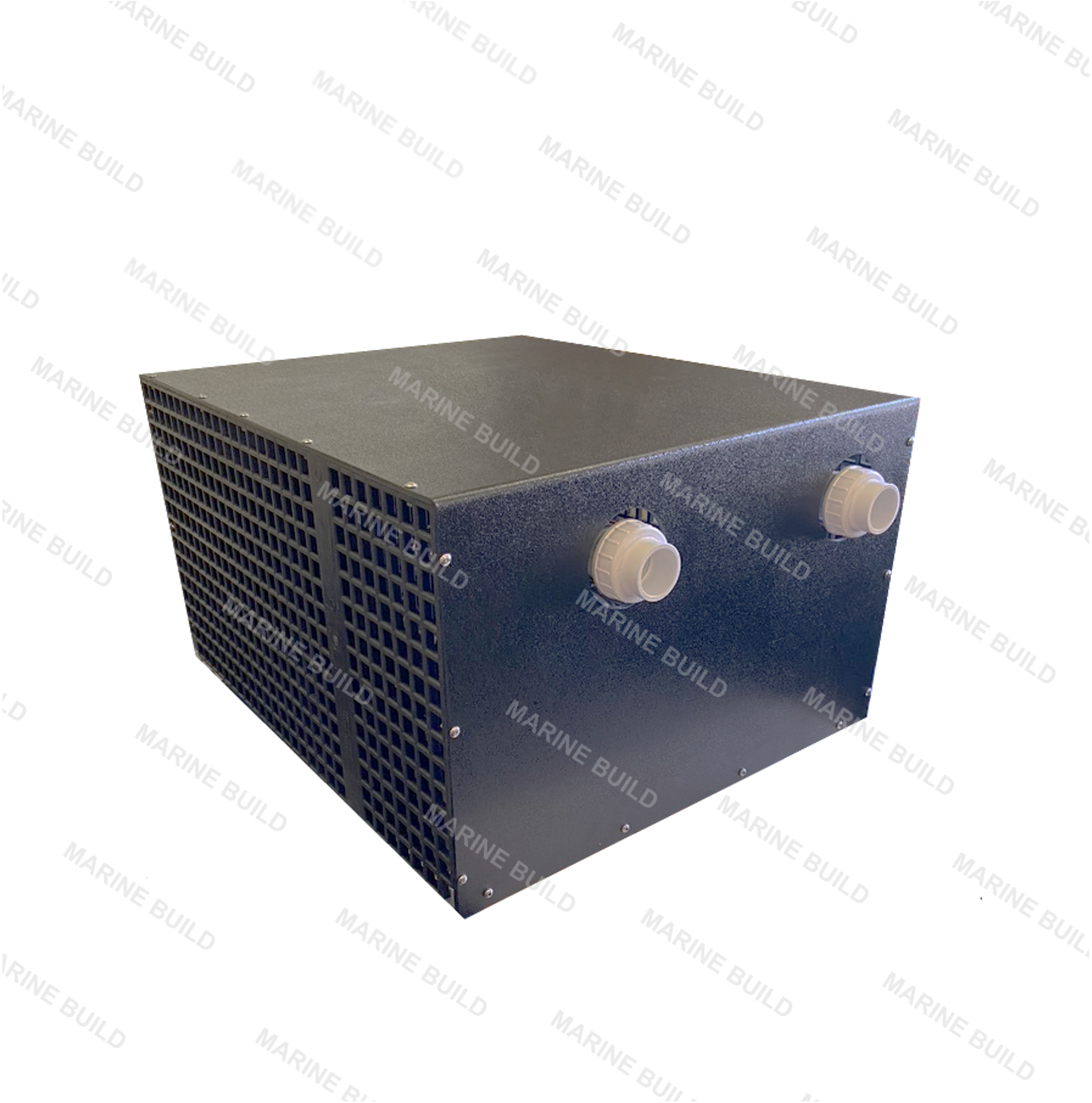

- Optional safety flow switch and ABS enclosure
- Made in Canada
| Capacity Specifications |
| Model | Nominal HP | BTU/H | KW | Temp Range |
Min/Max Flow [GPM] |
| KL-0020-A1U | 1/5 |
2,700 | 0.79 | 50-65 | 8/15 |
| KL-0025-A1U | 1/4 | 3,100 |
0.91 | 50-65 | 8/15 |
| KL-0033-A1U | 1/3 | 4,450 |
1.30 | 50-65 | 10/20 |
| KL-0050-A1U | 1/2 | 6,150 |
1.80 | 50-65 | 12/25 |
| KL-0075-B1U | 3/4 | 11,200 | 3.28 | 50-65 | 15/30 |
| KL-1000-B1U | 1 | 14,200 | 4.16 | 50-65 | 15/30 |
- Nomical Capacity is based on an ambient temperature of 90°F and an evaporate temperature of 45°F.
- Flow rate requirements are relative to water temperature. As a rule of thumb, colder water requires higher flow.
- Ensure the recommended water flow rate found on the chart is followed or the titanium coil may freeze and damage the chiller.
| Electrical and Physical Specifications |
| Model | Electrical Ratings [V/Ph/Hz] | Amps |
Max Fuse [Amps] |
Water Connections |
Dimensions [LxWxH] |
| KL-0020-A1U | 115/1/60 | 4.85 | 7 | 1" Union w/ FNPT | 20"x18"x12 |
| KL-0025-A1U | 115/1/60 | 5.15 | 7 | 1" Union w/ FNPT | 20"x18"x12 |
| KL-0033-A1U | 115/1/60 | 9.35 | 12 | 1" Union w/ FNPT | 20"x18"x12 |
| KL-0050-A1U | 115/1/60 | 11 | 15 | 1" Union w/ FNPT | 21"x20"x13" |
| KL-0075-B1U | 208-230/1/60 | 8.4 | 12 | 1" Union w/ FNPT | 27"x26"x16" |
| KL-1000-B1U | 208-230/3/60 | 9 | 12 | 1" Union w/ FNPT | 27"x26"x16" |
- Specifications subject to change without notice, and dimensions may vary.
