Description

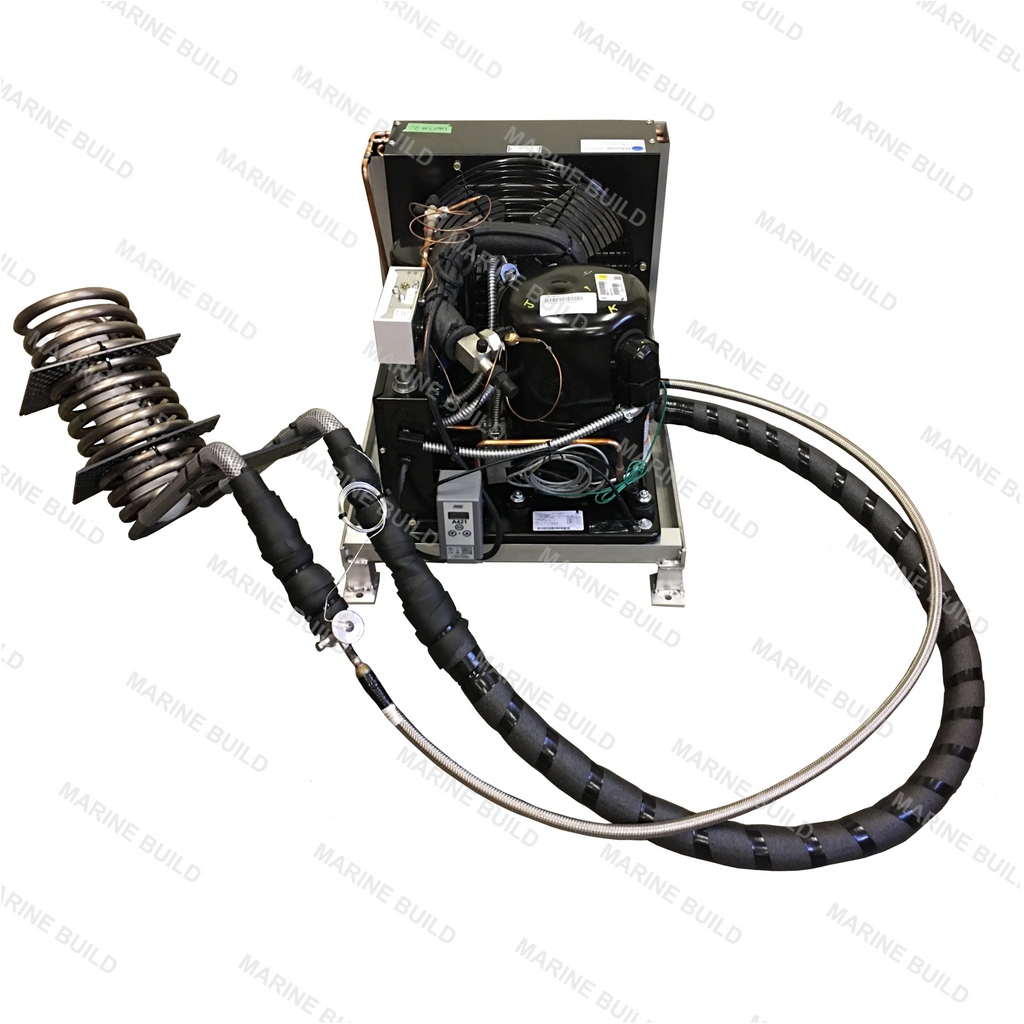

KiteFlex drop-in coil chillers range in size from 1/5 HP to 1 HP
- Formly known as Ti-Chad
Product Description:
The KiteFlex series is designed for when a non-permenant or a hassle free plumbing solution is needed. It is flexible in its usuage and easy to use. The coil is inserted in to the container to be chilled, the controller is set to the desired temperature, and then the unit does its work. There is no need for plumbing into the KiteFlex, it is just dropped in and ready to go.
Features:
- Hi-Tek flexible refrigerant line which is crimp & break resistant
- Temperature range capability is between 50ºF-80ºF (10ºC–27ºC)
- Non-corrosive and non-contaminating drop-in titanium coil heat exchanger
- Electronic controller with LCD readout for Fahrenheit/Celsius, featuring programmable time delay
- UL and/or CSA-approved condensing unit and components
- Salt or freshwater compatible
- Optional ABS enclosure
- Made in Canada
| Capacity Specifications |
| Model | Nominal HP | BTU/H | KW |
Temp Range [°F] |
Min/Max Flow [GPM] |
| KF-0020-AH | 1/5 | 2,700 |
0.79 | 65-80 | 8/15 |
| KF-0020-AM | 1/5 | 2,700 | 0.79 | 50-65 | 8/15 |
| KF-0025-AH | 1/4 | 3,100 |
0.91 | 65-80 | 8/15 |
| KF-0025-AM | 1/4 | 3,100 | 0.91 | 50-65 | 8/15 |
| KF-0033-AH | 1/3 | 4,450 | 1.30 | 65-80 | 10/20 |
| KF-0033-AM | 1/3 | 4,450 | 1.30 | 50-65 | 10/20 |
| KF-0050-AH | 1/2 | 6,150 | 1.80 | 65-80 | 12/25 |
| KF-0050-AM | 1/2 | 6,150 | 1.80 | 50-65 | 12/25 |
| KF-0075-AH | 3/4 | 11,200 | 3.28 | 65-80 | 15/30 |
| KF-0075-AM | 3/4 | 11,200 | 3.28 | 50-65 | 15/30 |
| KF-0075-BH | 3/4 | 11,200 | 3.28 | 65-80 | 15/30 |
| KF-0075-BM | 3/4 | 11,200 | 3.28 | 50-65 | 15/30 |
| KF-0100-BH | 1 | 14,200 | 4.16 | 65-80 | 15/30 |
| KF-0100-BM | 1 | 14,200 | 4.16 | 50-65 | 15/30 |
- Nomical Capacity is based on an ambient temperature of 90°F and an evaporate temperature of 45°F.
- Flow rate requirements are relative to water temperature. As a rule of thumb, colder water requires higher flow.
- Ensure the recommended water flow rate found on the chart is followed or the titanium coil may freeze and damage the chiller.
| Electrical and Physical Specifications |
| Model | Electrical Ratings [V/Ph/Hz] | Amps |
Max Fuse [Amps] |
Coil Dimensions |
Dimensions [LxWxH] |
| KF-0020-A | 115/1/60 | 4.85 |
7 | N/A |
14"x11"x11" |
| KF-0025-A | 115/1/60 | 5.15 | 7 |
N/A |
14"x11"x11" |
| KF-0033-A | 115/1/60 |
9.35 |
12 |
N/A |
14"x11"x11" |
| KF-0050-A | 115/1/60 | 11 |
15 |
N/A |
18"x14"x13" |
| KF-0075-A | 115/1/60 | 14.75 | 20 | N/A | N/A |
| KF-0075-B | 208-230/1/60 | 8.4 | 12 |
N/A |
N/A |
| KF-0100-B | 208-230/1/60 | 9 | 12 |
N/A |
N/A |
- Specifications subject to change without notice, and dimensions may vary.
